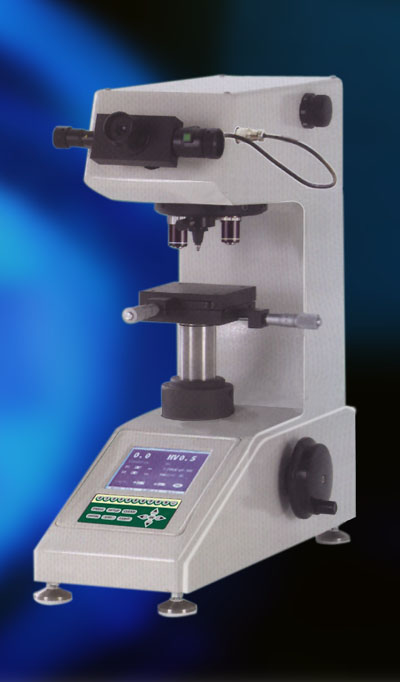

MVC-1000D1型显微硬度计造型新颖、美观，而且它具有良好的可靠性，可操作性和直观性。内置硬度计算器，可通过输入压痕对角线长度，直接在LCD屏幕上显示硬度值。
该机采用高倍率光学测量系统，目镜鼓轮一次读数。测量装置与工作压头自动切换，减少人为震动。该机可测定钢、有色金属、IC薄片、薄塑料、金属薄片、涂层、表面覆层、层压金属、热处理碳化层和淬火硬化层的深度与硬度梯度。
The type of A1 MVC-1000 shows minute details the degree of hardness accounts the shape novel and beautiful, and it have the good and dependable, maneuverability with keep the view.The inside places the degree of hardness calculator, can pass the importation press the diagonal line length, direct the manifestation degree of hardness is worth in LCD holding the act.
That machine adopts the high magnification optics the diagraph the system, the eyes drum round is a to read the number.Measure to equip to press with work the head cut over automatically, reducing the artificial vibration.That machine can measurese the steel, have the color metals, the thin slice of IC, thin plastics, metals thin slice and draw the layer, surface layer, layer presses the metals, heat handles the carbonization layer hardens the depth of the layer with the fire of and degree of hardness steps degree. |
| |
显微硬度标尺HV0.01, HV0.025, HV0.05, HV0.1, HV0.3,
HV0.5, HV1
显示保持时间(秒)，硬度值
试验力10 - 25 - 50 - 100 - 200 - 300 - 500 - 1000gf
精度符合EN-ISO 6507
加载控制自动(加载/保持/卸载)
试验力保持时间5 ~ 60秒(5秒为增量)
试验力选择外置式选力旋钮，试验力显示在LCD屏上物镜10×，40× 目镜放大倍数10×
总放大倍数100×(观察)，400×(测量)
测量范围200μm
分辨率0.5μm
XY试台
尺寸
100 x 100mm
行程范围 25 x 25mm
分辨率0.01mm(微分头)
试件
最大高度85mm
最大宽度120mm(从压头中心线至机壁距离)
电源110-220V 50Hz
尺寸490×185×515mm
重量 35kg |
